Micronaut Oracle Cloud

Provides integration between Micronaut and Oracle Cloud

Version:

1 Introduction

This module provides integration between Micronaut and the Oracle Cloud Infrastructure (OCI) SDK by giving you the ability to easily inject SDK clients into your Micronaut services and controllers. In addition to supporting the SDK’s blocking clients, the module provides reactive clients that use RxJava to provide async alternatives to the blocking clients in the SDK (an improvement upon the SDK’s 'out-of-the-box' async clients). This module also includes support for Oracle Cloud (serverless) Functions and Oracle Cloud Autonomous Database.

2 Release History

For this project, you can find a list of releases (with release notes) here:

https://github.com/micronaut-projects/micronaut-oracle-cloud/releases

3 Quick Start

To get started quickly, setup the Oracle Cloud CLI making sure you have run oci setup config to configure local access to Oracle Cloud.

Then add a dependency on the micronaut-oraclecloud-sdk module:

implementation("io.micronaut.oraclecloud:micronaut-oraclecloud-sdk")
<dependency>
    <groupId>io.micronaut.oraclecloud</groupId>
    <artifactId>micronaut-oraclecloud-sdk</artifactId>
</dependency>

followed by adding dependencies on the OCI SDK clients you wish to use, for example for Object Store:

implementation("com.oracle.oci.sdk:oci-java-sdk-objectstorage")
<dependency>
    <groupId>com.oracle.oci.sdk</groupId>
    <artifactId>oci-java-sdk-objectstorage</artifactId>
</dependency>

All OCI SDK clients are supported.

4 Authentication

The following authentication providers are supported in this module:

ConfigFileAuthenticationDetailsProvider

ConfigFileAuthenticationDetailsProvider uses a config file located at $USER_HOME/.oci/config. Specify a profile or config file path within the config file via your application.yml:

oci:
  config:
    profile: DEFAULT
    path: /custom/path/to/config/file
In the Oracle Java SDK the environment variable OCI_CONFIG_FILE doesn’t take precedence over the ~/.oci/config if the file exists. Assign the OCI_CONFIG_FILE to oci.config.path. To change the order: oci.config.path: ${OCI_CONFIG_FILE}

SimpleAuthenticationDetailsProvider

SimpleAuthenticationDetailsProvider lets you provide config details via standard Micronaut configuration files (application.yml).

oci:
  fingerprint: [String. The private key fingerprint]
  passphrase: [String. The private key passphrase]
  private-key: [String. The contents of your private key. Optionally, pass a path with private-key-file (see below).]
  private-key-file: [String. The path to the private key file (used in place of private-key above)]
  region: [String. e.g. us-phoenix-1]
  tenant-id: [String. The tenancy OCID]
  user-id: [String. The user OCID]

InstancePrincipalsAuthenticationDetailsProvider

If your application is running in Oracle Cloud, you can authorize InstancePrincipalsAuthenticationDetailsProvider to make SDK calls and utilize Instance Principal authentication. See the documentation to enable this via dynamic groups and policies, and then enable it for the Oracle Cloud environment via application-oraclecloud.yml with:

oci:
  config:
    instance-principal:
        enabled: true

ResourcePrincipalAuthenticationDetailsProvider

ResourcePrincipalAuthenticationDetailsProvider is similar to instance principals, but used for Oracle Functions (serverless). See the documentation for instructions on how to configure the necessary dynamic group rules and policies to use Resource Principal auth with your serverless functions. Once the proper configuration is complete, your Micronaut driven serverless functions will be able to use the OCI SDKs.

5 Available Modules

The following modules are provided.

micronaut-oraclecloud-common

implementation("io.micronaut.oraclecloud:micronaut-oraclecloud-common")
<dependency>
    <groupId>io.micronaut.oraclecloud</groupId>
    <artifactId>micronaut-oraclecloud-common</artifactId>
</dependency>

Provides the common functionality and sets up the following beans:

micronaut-oraclecloud-sdk

implementation("io.micronaut.oraclecloud:micronaut-oraclecloud-sdk")
<dependency>
    <groupId>io.micronaut.oraclecloud</groupId>
    <artifactId>micronaut-oraclecloud-sdk</artifactId>
</dependency>

Provides support for injecting any of the available SDK client interfaces.

This module does not have a dependency on any one module. You should add these to your project as needed. For example to use Object Storage you would define a dependency on this module as well as:

implementation("com.oracle.oci.sdk:oci-java-sdk-objectstorage")
<dependency>
    <groupId>com.oracle.oci.sdk</groupId>
    <artifactId>oci-java-sdk-objectstorage</artifactId>
</dependency>

It is important to note that if you plan to build native images you also need to ensure the transitive javassist dependency is not included when adding dependencies on SDK modules using dependency exclusions. For example with Gradle:

Excluding javassist
implementation "com.oracle.oci.sdk:oci-java-sdk-objectstorage", {
    exclude module:'javassist'
}

micronaut-oraclecloud-function

implementation("io.micronaut.oraclecloud:micronaut-oraclecloud-function")
<dependency>
    <groupId>io.micronaut.oraclecloud</groupId>
    <artifactId>micronaut-oraclecloud-function</artifactId>
</dependency>

Provides the OciFunction superclass that you can subclass to write Oracle Cloud Functions in Micronaut that can utilize Micronaut dependency injection.

micronaut-oraclecloud-function-http

implementation("io.micronaut.oraclecloud:micronaut-oraclecloud-function-http")
<dependency>
    <groupId>io.micronaut.oraclecloud</groupId>
    <artifactId>micronaut-oraclecloud-function-http</artifactId>
</dependency>

Provides the HttpFunction class that can be used as a handler to write HTTP API Gateway function handlers that delegate to regular Micronaut controllers.

micronaut-oraclecloud-atp

implementation("io.micronaut.oraclecloud:micronaut-oraclecloud-atp")
<dependency>
    <groupId>io.micronaut.oraclecloud</groupId>
    <artifactId>micronaut-oraclecloud-atp</artifactId>
</dependency>

Provides support for configuring the data source connection for the UCP and HikariCP connection pools by specifying Oracle Cloud Autonomous Database configuration.

The module generates the OracleWallet on startup.

micronaut-oraclecloud-micrometer

implementation("io.micronaut.oraclecloud:micronaut-oraclecloud-micrometer")
<dependency>
    <groupId>io.micronaut.oraclecloud</groupId>
    <artifactId>micronaut-oraclecloud-micrometer</artifactId>
</dependency>

Provides support for sending Micrometer metrics to the Oracle Cloud Monitoring service.

micronaut-oraclecloud-vault

implementation("io.micronaut.oraclecloud:micronaut-oraclecloud-vault")
<dependency>
    <groupId>io.micronaut.oraclecloud</groupId>
    <artifactId>micronaut-oraclecloud-vault</artifactId>
</dependency>

Provides support for Distributed Configuration with Oracle Cloud Vault service.

6 RxJava 2 Support

In addition to the blocking clients, this module provides clients that use RxJava to allow reactive programming with Micronaut for each SDK.

You need to add the relevant OCI SDK dependency to use these clients.

For example, instead of ObjectStorageClient, you can inject ObjectStorageRxClient to use the Object Storage API:

import com.oracle.bmc.objectstorage.model.BucketSummary;
import com.oracle.bmc.objectstorage.model.CreateBucketDetails;
import com.oracle.bmc.objectstorage.requests.CreateBucketRequest;
import com.oracle.bmc.objectstorage.requests.DeleteBucketRequest;
import com.oracle.bmc.objectstorage.requests.GetNamespaceRequest;
import com.oracle.bmc.objectstorage.requests.ListBucketsRequest;
import com.oracle.bmc.objectstorage.responses.CreateBucketResponse;
import io.micronaut.core.annotation.Nullable;
import io.micronaut.http.annotation.Controller;
import io.micronaut.http.annotation.Delete;
import io.micronaut.http.annotation.Get;
import io.micronaut.http.annotation.PathVariable;
import io.micronaut.http.annotation.Post;
import io.micronaut.oraclecloud.clients.rxjava2.objectstorage.ObjectStorageRxClient;
import io.micronaut.oraclecloud.core.TenancyIdProvider;
import io.reactivex.Single;

import java.util.List;
import java.util.stream.Collectors;

@Controller("/os")
public class BucketController implements BucketOperations {

    private final ObjectStorageRxClient objectStorage;
    private final TenancyIdProvider tenancyIdProvider;

    public BucketController(ObjectStorageRxClient objectStorage,
                            TenancyIdProvider tenancyIdProvider) { (1)
        this.objectStorage = objectStorage;
        this.tenancyIdProvider = tenancyIdProvider;
    }
}
import com.oracle.bmc.objectstorage.model.CreateBucketDetails
import com.oracle.bmc.objectstorage.requests.CreateBucketRequest
import com.oracle.bmc.objectstorage.requests.DeleteBucketRequest
import com.oracle.bmc.objectstorage.requests.GetNamespaceRequest
import com.oracle.bmc.objectstorage.requests.ListBucketsRequest
import com.oracle.bmc.objectstorage.responses.CreateBucketResponse
import groovy.transform.CompileStatic
import io.micronaut.core.annotation.Nullable
import io.micronaut.http.annotation.Controller
import io.micronaut.http.annotation.Delete
import io.micronaut.http.annotation.Get
import io.micronaut.http.annotation.PathVariable
import io.micronaut.http.annotation.Post
import io.micronaut.oraclecloud.clients.rxjava2.objectstorage.ObjectStorageRxClient
import io.micronaut.oraclecloud.core.TenancyIdProvider
import io.reactivex.Single

@CompileStatic
@Controller('/os')
class BucketController implements BucketOperations {

    private final ObjectStorageRxClient objectStorage
    private final TenancyIdProvider tenancyIdProvider

    BucketController(ObjectStorageRxClient objectStorage,
                     TenancyIdProvider tenancyIdProvider) { (1)
        this.objectStorage = objectStorage
        this.tenancyIdProvider = tenancyIdProvider
    }
}
import io.micronaut.oraclecloud.clients.rxjava2.objectstorage.ObjectStorageRxClient
import io.micronaut.oraclecloud.core.TenancyIdProvider
import io.micronaut.http.annotation.Get
import io.micronaut.http.annotation.PathVariable
import com.oracle.bmc.objectstorage.requests.ListBucketsRequest
import com.oracle.bmc.objectstorage.responses.ListBucketsResponse
import com.oracle.bmc.objectstorage.requests.CreateBucketRequest
import com.oracle.bmc.objectstorage.model.CreateBucketDetails
import com.oracle.bmc.objectstorage.responses.CreateBucketResponse
import com.oracle.bmc.objectstorage.requests.DeleteBucketRequest
import com.oracle.bmc.objectstorage.requests.GetNamespaceRequest
import com.oracle.bmc.objectstorage.responses.DeleteBucketResponse
import com.oracle.bmc.objectstorage.responses.GetNamespaceResponse
import io.micronaut.core.annotation.Nullable
import io.micronaut.http.annotation.Controller
import io.micronaut.http.annotation.Delete
import io.micronaut.http.annotation.Post
import io.reactivex.Single

@Controller("/os")
class BucketController(private val objectStorage: ObjectStorageRxClient,
                       private val tenancyIdProvider: TenancyIdProvider) (1)
    : BucketOperations {
}
1 The ObjectStorageRxClient is injected into the constructor.

Once you have a reference to the relevant RxJava 2 client, it is easier to compose non-blocking operations. The following example creates a bucket:

@Override
@Post(value = "/buckets/{name}")
public Single<String> createBucket(String name) {

    String tenancyId = tenancyIdProvider.getTenancyId();
    GetNamespaceRequest getNamespaceRequest = GetNamespaceRequest.builder()
            .compartmentId(tenancyId).build();
    return objectStorage.getNamespace(getNamespaceRequest) (1)
            .flatMap(namespaceResponse -> {
                CreateBucketRequest createBucketRequest = CreateBucketRequest.builder()
                        .namespaceName(namespaceResponse.getValue())
                        .createBucketDetails(CreateBucketDetails.builder()
                                .compartmentId(tenancyId)
                                .name(name)
                                .build())
                        .build();

                return objectStorage.createBucket(createBucketRequest) (2)
                        .map(CreateBucketResponse::getLocation); (3)
            });
}
@Override
@Post(value = '/buckets/{name}')
Single<String> createBucket(String name) {

    String tenancyId = tenancyIdProvider.tenancyId
    GetNamespaceRequest getNamespaceRequest = GetNamespaceRequest.builder()
            .compartmentId(tenancyId).build()
    return objectStorage.getNamespace(getNamespaceRequest) (1)
            .flatMap(namespaceResponse -> {
                CreateBucketRequest createBucketRequest = CreateBucketRequest.builder()
                        .namespaceName(namespaceResponse.value)
                        .createBucketDetails(CreateBucketDetails.builder()
                                .compartmentId(tenancyId)
                                .name(name)
                                .build())
                        .build()

                return objectStorage.createBucket(createBucketRequest) (2)
                        .map(CreateBucketResponse::getLocation) (3)
            }) as Single<String>
}
@Post(value = "/buckets/{name}")
override fun createBucket(name: String): Single<String> {
    val tenancyId = tenancyIdProvider.tenancyId
    val getNamespaceRequest = GetNamespaceRequest.builder()
            .compartmentId(tenancyId).build()
    return objectStorage.getNamespace(getNamespaceRequest) (1)
            .flatMap { namespaceResponse: GetNamespaceResponse ->
                val createBucketRequest = CreateBucketRequest.builder()
                        .namespaceName(namespaceResponse.value)
                        .createBucketDetails(CreateBucketDetails.builder()
                                .compartmentId(tenancyId)
                                .name(name)
                                .build())
                        .build()
                objectStorage.createBucket(createBucketRequest) (2)
                        .map { obj: CreateBucketResponse -> obj.location } (3)
            }
}
1 First a request to obtain the namespace is sent
2 Then with the response the flatMap operator is used to send another request to create a bucket
3 Finally the location of the bucket is returned in the response

7 Oracle Functions (Serverless)

Oracle Functions are based on Project.fn. You can write simple functions targeting the Oracle Function environment by extending from the OciFunction superclass.

Micronaut’s Oracle Function support can utilize GraalVM native-image running within a Docker container. This will result in extremely responsive serverless functions utilizing very few Cloud resources.

This superclass enables dependency injection for the function. Note that the the function definition must conform to the following rules:

  • The class must have a public no arguments constructor

  • A public method that executes the function must be defined

  • The class must be annotated with @Singleton

Micronaut support for Oracle Functions can be combined with the OCI SDK support to give your serverless functions access to the OCI SDKs as needed.

You must have resource principal authentication properly configured in order for this example to work.

Creating a Function with a Gradle build

With Micronaut 2.1 and above you can create a new Oracle Function using Gradle as the build tool with the following command line command:

$ mn create-function-app myfunction --features oracle-function

This will create a Gradle build that sets up the Micronaut Gradle plugin. The only changes you need to make are to modify the build.gradle and alter the dockerBuild and dockerBuildNative to point at the Oracle Cloud Registry you wish the publish the docker images for the function:

dockerBuild {
    images = ["[REGION].ocir.io/[TENANCY_ID]/[REPOSITORY]/$project.name:$project.version"]
}

dockerBuildNative {
    images = ["[REGION].ocir.io/[TENANCY_ID]/[REPOSITORY]/$project.name:$project.version"]
}

The REGION should be altered to your region, the TENANCY_ID to your tenancy and the REPOSITORY to the Docker repository you wish to publish to.

Creating a Function with a Maven build

With Micronaut 2.2 and above you can create a new Oracle Function using Maven as the build tool with the following command line command:

$ mn create-function-app myfunction --build=maven --features oracle-function

This will create a Maven build that sets up the Micronaut Maven plugin. The only changes you need to make are to modify the pom.xml and and add these properties in the <properties> section to point at the Oracle Cloud Registry you wish the publish the docker images for the function:

<jib.docker.image>[REGION].ocir.io/[TENANCY_ID]/[REPOSITORY]/${project.artifactId}</jib.docker.image>

<jib.docker.tag>${project.version}</jib.docker.tag>

The REGION should be altered to your region, the TENANCY_ID to your tenancy and the REPOSITORY to the Docker repository you wish to publish to.

Also add a property to define the full class name and package of the function class, e.g.

<exec.mainClass>com.mycompany.MyFunction</exec.mainClass>

Build

The following provides a serverless function example that uses the Object Storage API to list the available buckets:

import com.oracle.bmc.objectstorage.ObjectStorageClient;
import com.oracle.bmc.objectstorage.model.BucketSummary;
import com.oracle.bmc.objectstorage.requests.GetNamespaceRequest;
import com.oracle.bmc.objectstorage.requests.ListBucketsRequest;
import io.micronaut.core.annotation.ReflectiveAccess;
import io.micronaut.oraclecloud.core.TenancyIdProvider;
import io.micronaut.oraclecloud.function.OciFunction;

import javax.inject.Inject;
import javax.inject.Singleton;
import java.util.List;
import java.util.stream.Collectors;

@Singleton
public class ListBucketsFunction extends OciFunction { (1)

    @Inject
    ObjectStorageClient objectStorageClient; (2)

    @Inject
    TenancyIdProvider tenantIdProvider;
}
import com.oracle.bmc.objectstorage.ObjectStorageClient
import com.oracle.bmc.objectstorage.requests.GetNamespaceRequest
import com.oracle.bmc.objectstorage.requests.ListBucketsRequest
import groovy.transform.CompileStatic
import io.micronaut.core.annotation.ReflectiveAccess
import io.micronaut.oraclecloud.core.TenancyIdProvider
import io.micronaut.oraclecloud.function.OciFunction

import javax.inject.Inject
import javax.inject.Singleton

@CompileStatic
@Singleton
class ListBucketsFunction extends OciFunction { (1)

    @Inject
    ObjectStorageClient objectStorageClient (2)

    @Inject
    TenancyIdProvider tenantIdProvider

}
import com.oracle.bmc.objectstorage.ObjectStorageClient
import com.oracle.bmc.objectstorage.requests.GetNamespaceRequest
import com.oracle.bmc.objectstorage.requests.ListBucketsRequest
import io.micronaut.core.annotation.ReflectiveAccess
import io.micronaut.oraclecloud.core.TenancyIdProvider
import io.micronaut.oraclecloud.function.OciFunction
import javax.inject.Inject
import javax.inject.Singleton

@Singleton
class ListBucketsFunction : OciFunction() { (1)

    @Inject
    lateinit var objectStorageClient : ObjectStorageClient (2)

    @Inject
    lateinit var tenantIdProvider: TenancyIdProvider

}
1 A public class with a no argument constructor annotated with @Singleton and extending from OciFunction
2 You can use the @Inject annotation to inject SDK components

Once you have defined the function, define a public method that is the function handler, for example:

@ReflectiveAccess
public List<String> handleRequest() {

    GetNamespaceRequest getNamespaceRequest = GetNamespaceRequest.builder()
            .compartmentId(tenantIdProvider.getTenancyId()).build();
    String namespace = objectStorageClient.getNamespace(getNamespaceRequest).getValue();

    ListBucketsRequest listBucketsRequest = ListBucketsRequest.builder()
            .namespaceName(namespace)
            .compartmentId(tenantIdProvider.getTenancyId())
            .build();

    return objectStorageClient.listBuckets(listBucketsRequest)
            .getItems().stream().map(BucketSummary::getName)
            .collect(Collectors.toList());
}
@ReflectiveAccess
List<String> handleRequest() {

    GetNamespaceRequest getNamespaceRequest = GetNamespaceRequest.builder()
            .compartmentId(tenantIdProvider.tenancyId).build()
    String namespace = objectStorageClient.getNamespace(getNamespaceRequest).value

    ListBucketsRequest listBucketsRequest = ListBucketsRequest.builder()
            .namespaceName(namespace)
            .compartmentId(tenantIdProvider.tenancyId)
            .build()

    return objectStorageClient.listBuckets(listBucketsRequest).items*.name
}
@ReflectiveAccess
fun handleRequest(): List<String> {

    val getNamespaceRequest = GetNamespaceRequest.builder()
            .compartmentId(tenantIdProvider.tenancyId).build()
    val namespace = objectStorageClient.getNamespace(getNamespaceRequest).value

    val listBucketsRequest = ListBucketsRequest.builder()
            .namespaceName(namespace)
            .compartmentId(tenantIdProvider.tenancyId)
            .build()

    return objectStorageClient.listBuckets(listBucketsRequest)
            .items.map { it.name }

The above example uses the Object Storage API to list the available buckets.

Docker Build

To build the Oracle Function with Gradle, run the ./gradlew dockerBuild command or to build the GraalVM native image version run ./gradlew dockerBuildNative.

To build the Oracle Function with Maven, run the ./mvnw package -Dpackaging=docker command or to build the GraalVM native image version run ./mvnw package -Dpackaging=docker-native.

Deploy

To deploy the Oracle Function as a Java function with Gradle, run ./gradlew dockerPush to push the function to Oracle Container Registry, or to deploy the GraalVM native image version run ./gradlew dockerPushNative.

To deploy the Oracle Function as a Java function with Maven, run ./mvnw deploy -Dpackaging=docker to push the function to Oracle Container Registry, or to deploy the GraalVM native image version run ./mvnw deploy -Dpackaging=docker-native.

Note that these commands only publish the function to Oracle Container Registry. To make the function invokable, use the Oracle Cloud UI to create the function, or use the fn command line application to create the function from the container image:

Creating a Function from a Container Image
$ fn create function myapp myfunction [REGION].ocir.io/[TENANCY]/[REPOSITORY/[FUNCTION_NAME]:[FUNCTION_VERSION]

## For example:
$ fn create function myapp myfunction us-ashburn-1.ocir.io/mytenancy/myrepository/myfunction:1.0.0
For Java functions that do not use Native Image you will need to pass --memory 512 --timeout 120 as Java functions occupy more memory that native functions.

If you publish a new image using ./gradlew dockerPush or ./gradlew dockerPushNative (or with Maven using ./mvnw deploy -Dpackaging=docker or ./mvnw deploy -Dpackaging=docker-native) for an existing function you can also update it with fn update:

Updating an existing Function from a Container Image
$ fn update function myapp myfunction [REGION].ocir.io/[TENANCY]/[REPOSITORY/[FUNCTION_NAME]:[FUNCTION_VERSION]

8 Oracle Functions HTTP (Serverless)

The micronaut-oraclecloud-function-http module gives you the ability to write HTTP API Gateway function handlers that delegate to regular Micronaut controllers.

Since Micronaut 2.1 you can create HTTP functions with a Gradle build using the command line or via Micronaut Launch:

Creating a new Function with the CLI
$ mn create-app myfunction --features oracle-function

Since Micronaut 2.2 you can create HTTP functions with a Maven build using the command line or via Micronaut Launch:

Creating a new Function with the CLI
$ mn create-app myfunction --build=maven --features oracle-function

You can then create your controller just as you would a normal Micronaut controller.

import com.oracle.bmc.objectstorage.ObjectStorage;
import com.oracle.bmc.objectstorage.model.BucketSummary;
import com.oracle.bmc.objectstorage.model.CreateBucketDetails;
import com.oracle.bmc.objectstorage.model.ListObjects;
import com.oracle.bmc.objectstorage.model.ObjectSummary;
import com.oracle.bmc.objectstorage.requests.CreateBucketRequest;
import com.oracle.bmc.objectstorage.requests.DeleteBucketRequest;
import com.oracle.bmc.objectstorage.requests.GetNamespaceRequest;
import com.oracle.bmc.objectstorage.requests.ListBucketsRequest;
import com.oracle.bmc.objectstorage.requests.ListObjectsRequest;
import io.micronaut.core.annotation.Nullable;
import io.micronaut.core.util.CollectionUtils;
import io.micronaut.http.MediaType;
import io.micronaut.http.annotation.Controller;
import io.micronaut.http.annotation.Delete;
import io.micronaut.http.annotation.Get;
import io.micronaut.http.annotation.PathVariable;
import io.micronaut.http.annotation.Post;
import io.micronaut.http.annotation.QueryValue;
import io.micronaut.oraclecloud.core.TenancyIdProvider;

import java.util.List;
import java.util.Map;
import java.util.Optional;
import java.util.stream.Collectors;

@Controller("/os")
public class BucketController {

    private final ObjectStorage objectStorage;
    private final TenancyIdProvider tenancyIdProvider;

    public BucketController(ObjectStorage objectStorage,
                            TenancyIdProvider tenancyIdProvider) { (1)
        this.objectStorage = objectStorage;
        this.tenancyIdProvider = tenancyIdProvider;
    }
}
import com.oracle.bmc.objectstorage.ObjectStorage
import com.oracle.bmc.objectstorage.model.CreateBucketDetails
import com.oracle.bmc.objectstorage.model.ListObjects
import com.oracle.bmc.objectstorage.requests.CreateBucketRequest
import com.oracle.bmc.objectstorage.requests.DeleteBucketRequest
import com.oracle.bmc.objectstorage.requests.GetNamespaceRequest
import com.oracle.bmc.objectstorage.requests.ListBucketsRequest
import com.oracle.bmc.objectstorage.requests.ListObjectsRequest
import groovy.transform.CompileStatic
import io.micronaut.core.annotation.Nullable
import io.micronaut.http.MediaType
import io.micronaut.http.annotation.Controller
import io.micronaut.http.annotation.Delete
import io.micronaut.http.annotation.Get
import io.micronaut.http.annotation.PathVariable
import io.micronaut.http.annotation.Post
import io.micronaut.http.annotation.QueryValue
import io.micronaut.oraclecloud.core.TenancyIdProvider

@CompileStatic
@Controller('/os')
class BucketController {

    private final ObjectStorage objectStorage
    private final TenancyIdProvider tenancyIdProvider

    BucketController(ObjectStorage objectStorage,
                     TenancyIdProvider tenancyIdProvider) { (1)
        this.objectStorage = objectStorage
        this.tenancyIdProvider = tenancyIdProvider
    }
}
import com.oracle.bmc.objectstorage.ObjectStorage
import com.oracle.bmc.objectstorage.model.CreateBucketDetails
import com.oracle.bmc.objectstorage.requests.CreateBucketRequest
import com.oracle.bmc.objectstorage.requests.DeleteBucketRequest
import com.oracle.bmc.objectstorage.requests.GetNamespaceRequest
import com.oracle.bmc.objectstorage.requests.ListBucketsRequest
import com.oracle.bmc.objectstorage.requests.ListObjectsRequest
import io.micronaut.core.annotation.Nullable
import io.micronaut.http.MediaType
import io.micronaut.http.annotation.Controller
import io.micronaut.http.annotation.Delete
import io.micronaut.http.annotation.Get
import io.micronaut.http.annotation.PathVariable
import io.micronaut.http.annotation.Post
import io.micronaut.http.annotation.QueryValue
import io.micronaut.oraclecloud.core.TenancyIdProvider
import java.util.Optional

@Controller("/os")
class BucketController(private val objectStorage: ObjectStorage,
                       private val tenancyIdProvider: TenancyIdProvider) { (1)
}
1 This example uses the micronaut-oraclecloud-sdk module to perform Object Storage operations, so the ObjectStorage client and TenancyIdProvider are injected.

Next, add a controller method to list all of the buckets in a compartment:

@Get("/buckets{/compartmentId}")
public List<String> listBuckets(@PathVariable @Nullable String compartmentId) {

    String compartmentOcid = compartmentId != null ? compartmentId : tenancyIdProvider.getTenancyId();

    GetNamespaceRequest getNamespaceRequest = GetNamespaceRequest.builder()
            .compartmentId(compartmentOcid).build();
    String namespace = objectStorage.getNamespace(getNamespaceRequest).getValue();

    ListBucketsRequest listBucketsRequest = ListBucketsRequest.builder()
            .namespaceName(namespace)
            .compartmentId(compartmentOcid)
            .build();

    return objectStorage.listBuckets(listBucketsRequest)
            .getItems()
            .stream()
            .map(BucketSummary::getName)
            .collect(Collectors.toList());
}
@Get('/buckets{/compartmentId}')
List<String> listBuckets(@PathVariable @Nullable String compartmentId) {

    String compartmentOcid = compartmentId ?: tenancyIdProvider.tenancyId

    GetNamespaceRequest getNamespaceRequest = GetNamespaceRequest.builder()
            .compartmentId(compartmentOcid).build()
    String namespace = objectStorage.getNamespace(getNamespaceRequest).value

    ListBucketsRequest listBucketsRequest = ListBucketsRequest.builder()
            .namespaceName(namespace)
            .compartmentId(compartmentOcid)
            .build()

    return objectStorage.listBuckets(listBucketsRequest).items*.name
}
@Get("/buckets{/compartmentId}")
fun listBuckets(@PathVariable @Nullable compartmentId: String?): List<String> {
    val compartmentOcid = compartmentId ?: tenancyIdProvider.tenancyId!!
    val getNamespaceRequest = GetNamespaceRequest.builder()
            .compartmentId(compartmentOcid).build()
    val namespace = objectStorage.getNamespace(getNamespaceRequest).value
    val listBucketsRequest = ListBucketsRequest.builder()
            .namespaceName(namespace)
            .compartmentId(compartmentOcid)
            .build()
    return objectStorage.listBuckets(listBucketsRequest).items
            .map { it.name }
}

Docker Build

To build the Oracle Function with Gradle, run the ./gradlew dockerBuild command or to build the native version run ./gradlew dockerBuildNative.

To build the Oracle Function with Maven, run the ./mvnw package -Dpackaging=docker command or to build the native version run ./mvnw package -Dpackaging=docker-native.

Deploy

To deploy your function follow the same instructions provided for regular Oracle Functions.

API Gateway

Once you have deployed your function you’ll need to create an API Gateway to route requests to your serverless deployment. The Micronaut router will call the proper controller function based on the incoming HTTP Request Method and the path.

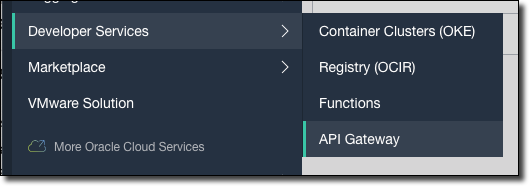

First, create an API Gateway by selecting 'Developer Services', then 'API Gateway' from the Oracle Cloud console dashboard.

API Gateway Menu

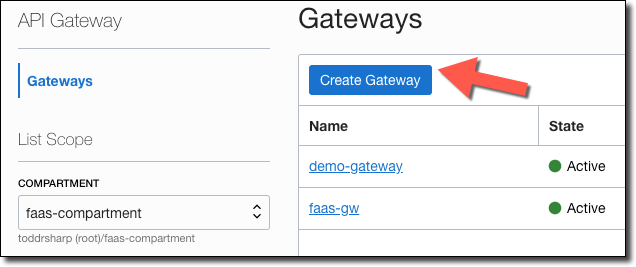

Click 'Create Gateway'.

Create Gateway Button

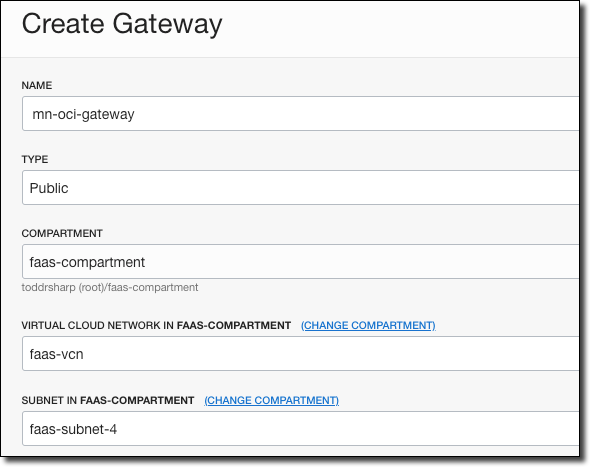

Enter a name for the gateway, choose the compartment it is stored in, and the network and subnet.

Create Gateway Button

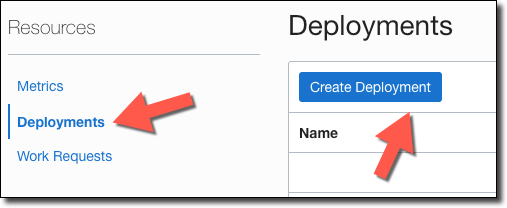

When the gateway is Active, click Deployments, then Create Deployment.

Create Gateway Button

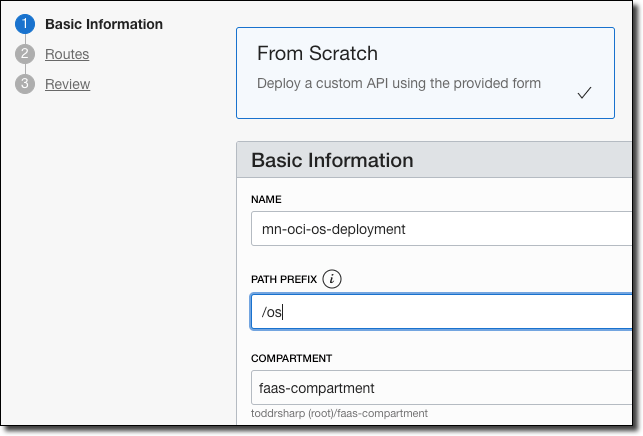

Provide a name for the deployment and enter a "Path Prefix". If necessary, configure any Authentication, CORS, or Rate Limiting and click Next.

The path prefix must match the path you used in your controller (e.g. @Controller("/os")).
Create Gateway Button

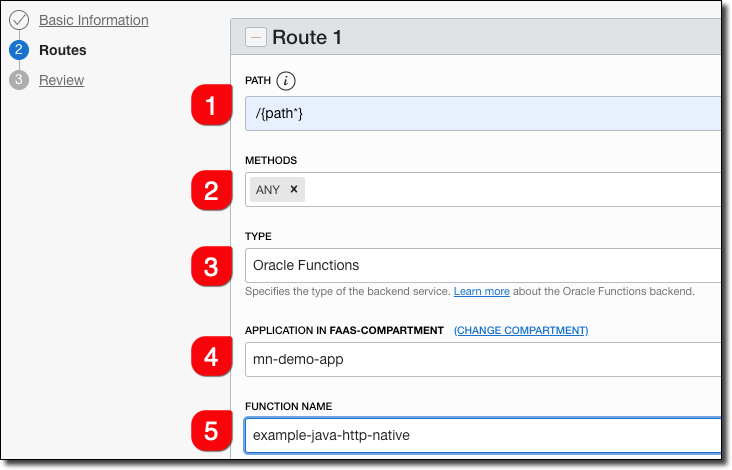

Enter route information.

  1. Enter /{path*} as the Path. This will capture all incoming requests and the Micronaut router will match the incoming path and request method with the proper controller method.

  2. Choose ANY for methods. Optionally, choose the necessary methods individually.

  3. Choose 'Oracle Functions' as the type.

  4. Choose the appropriate Oracle Functions application.

  5. Choose the function name that you used. This can be found in your function’s func.yaml file.

Create Gateway Button

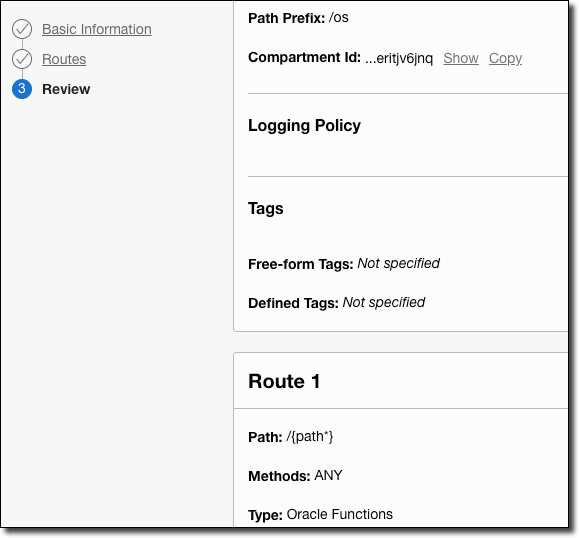

Click 'Next', then review the deployment details and click 'Create'.

Review Deployment Details

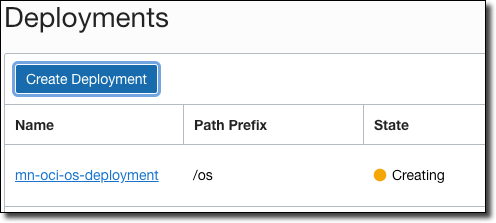

Your new deployment will be listed in 'Creating' state.

Deployment Creating

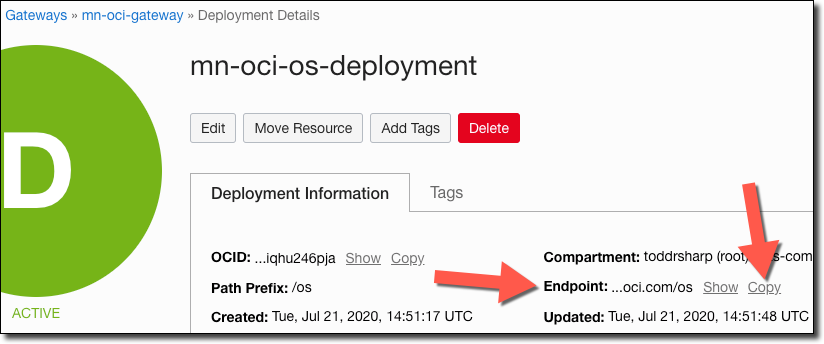

When your new deployment becomes 'Active', click the deployment to view the deployment details. Copy the 'Endpoint' - this is the base URL that you’ll use for your function invocations.

Create Gateway Button

Test your functions by appending the proper controller path and one of your controller endpoints.

Create Gateway Button

9 Oracle Autonomous Database

Oracle Cloud Autonomous Database connection information and credentials are stored in the Oracle Wallet.

Micronaut can automatically generate and download the Wallet and configure the data source.

First you need the correct version of the Oracle Database driver and required modules. To ensure you are using the right version apply the 21.1.0.0 or above Oracle Database BOM with Gradle:

implementation platform("com.oracle.database.jdbc:ojdbc-bom:21.1.0.0")

Or with Maven:

  <dependencyManagement>
    <dependencies>
      <dependency>
        <groupId>com.oracle.database.jdbc</groupId>
        <artifactId>ojdbc-bom</artifactId>
        <version>21.1.0.0</version>
        <type>pom</type>
        <scope>import</scope>
      </dependency>
    </dependencies>
  </dependencyManagement>

Secondly you need to add a dependency on the micronaut-oraclecloud-atp module:

runtime("io.micronaut.oraclecloud:micronaut-oraclecloud-atp")
<dependency>
    <groupId>io.micronaut.oraclecloud</groupId>
    <artifactId>micronaut-oraclecloud-atp</artifactId>
    <scope>runtime</scope>
</dependency>

Then you must configure the authentication provider.

Then simply add a dependency to one of the Micronaut connection pool implementations.

Automated configuration is currently supported only for the HikariCP and UCP connection pool.

runtime("io.micronaut.sql:micronaut-jdbc-ucp")
<dependency>
    <groupId>io.micronaut.sql</groupId>
    <artifactId>micronaut-jdbc-ucp</artifactId>
    <scope>runtime</scope>
</dependency>

Or:

runtime("io.micronaut.sql:micronaut-jdbc-hikari")
<dependency>
    <groupId>io.micronaut.sql</groupId>
    <artifactId>micronaut-jdbc-hikari</artifactId>
    <scope>runtime</scope>
</dependency>

Note that micronaut-oraclecloud-atp module is compatible with Java 11+.

To use automated data source configuration from the Wallet, provide a configuration similar to the following:

application.yaml
datasources:
  default:
    ocid: ocid1.autonomousdatabase.oc1..... (1)
    walletPassword: micronaut.1 (2)
    username: foo (3)
    password: bar (4)
1 autonomous database id
2 password to encrypt the keys inside the wallet; must be at least eight characters long and must include at least one letter and either one numeric character or one special character
3 database username
4 database password
The username and password are not automatically generated and must be created in advance.

Module uses <db_name>_high as a default service alias. This can be overriden with the serviceAlias property.

The wallet is of type SINGLE. Use the walletType property to configure different types. See other valid options at https://docs.oracle.com/en-us/iaas/api/#/en/database/20160918/datatypes/GenerateAutonomousDatabaseWalletDetails.

10 Micrometer Support For Oracle Monitoring

The OCI Monitoring service enables you to actively and passively monitor your cloud resources using the Metrics and Alarms features.

The micronaut-oraclecloud-micrometer module integrates Micronaut’s Micrometer support with the OCI Monitoring service.

To begin, first add the standard dependencies for the Micronaut Micrometer module per the documentation.

Next, add a dependency on the micronaut-oraclecloud-micrometer module:

runtime("io.micronaut.oraclecloud:micronaut-oraclecloud-micrometer")
<dependency>
    <groupId>io.micronaut.oraclecloud</groupId>
    <artifactId>micronaut-oraclecloud-micrometer</artifactId>
    <scope>runtime</scope>
</dependency>

Don’t forget to add a dependency for the OCI SDK Monitoring module:

implementation("com.oracle.oci.sdk:oci-java-sdk-monitoring")
<dependency>
    <groupId>com.oracle.oci.sdk</groupId>
    <artifactId>oci-java-sdk-monitoring</artifactId>
</dependency>

Then configure the authentication provider.

You can configure this Micrometer reporter using micronaut.metrics.export.oraclecloud. The most commonly changed configuration properties are listed below:

Name

Description

enabled

Whether to enable the reporter. Could disable to local dev for example. Default: true.

applicationName

Application name used as a common dimension. Default: ${micronaut.application.name}.

namespace

Metrics namespace. Required.

resourceGroup

Metrics resource group.

compartmentId

Oracle Cloud compartment id. Default: the Oracle SDK tenantId.

step

How frequently to report metrics. Default: PT1M (1 min). See java.time.Duration#parse(CharSequence).

batchSize

How many metrics send in one batch. Default: 50 (Max allowed number of metrics for current API).

descriptions

Boolean if meter descriptions should be sent to InfluxDB. Turn this off to minimize the amount of data sent on each scrape. Default: true
Example Oracle Cloud Config
micronaut:
  metrics:
    enabled: true
    export:
      oraclecloud:
        enabled: true
        namespace: test
        resourceGroup: foo

11 OCI Application Peformance Monitoring as a Tracing Endpoint

You can use OCI Application Performance Monitoring (APM) as a drop-in replacement for Tracing in your Micronaut Applications.

OCI APM is a suite of services that give you insight into your applications and servers running in OCI via a small agent that runs on the machine and aggregates and reports metric data. It’s a nice service to monitor and diagnose performance issues. It also includes a Trace Explorer that is Zipkin (and Jaeger) compatible which we can use from our Micronaut applications (even without taking full advantage of APM via the Java Agent).

Add Dependencies

Micronaut Management

implementation("io.micronaut:micronaut-management")
<dependency>
    <groupId>io.micronaut</groupId>
    <artifactId>micronaut-management</artifactId>
</dependency>

Micronaut Tracing

implementation("io.micronaut:micronaut-tracing")
<dependency>
    <groupId>io.micronaut</groupId>
    <artifactId>micronaut-tracing</artifactId>
</dependency>

Brave Instrumentation

runtime("io.zipkin.brave:brave-instrumentation-http")
<dependency>
    <groupId>io.zipkin.brave</groupId>
    <artifactId>brave-instrumentation-http</artifactId>
    <scope>runtime</scope>
</dependency>

Zipkin Reporter

runtime("io.zipkin.reporter2:zipkin-reporter")
<dependency>
    <groupId>io.zipkin.reporter2</groupId>
    <artifactId>zipkin-reporter</artifactId>
    <scope>runtime</scope>
</dependency>

Open Tracing

implementation("io.opentracing.brave:brave-opentracing")
<dependency>
    <groupId>io.opentracing.brave</groupId>
    <artifactId>brave-opentracing</artifactId>
</dependency>

Create APM Domain

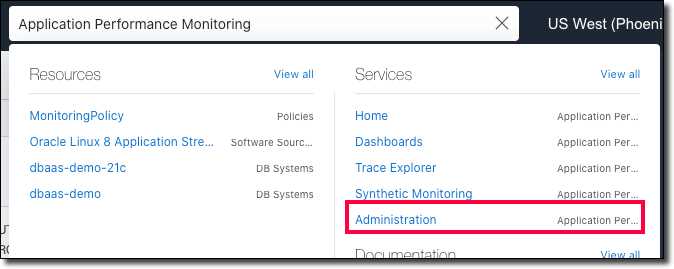

Now, create an APM domain in the OCI console. We’ll share a single domain to group and trace all of our services. That may seem a bit confusing given the name "domain", but think of it more like a "project group" or an "environment" (you may want to create separate domains for QA, Test, Prod, etc.). Search for Application Performance Monitoring and click Administration.

APM Adinistration

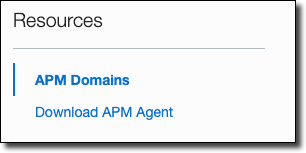

In the left sidebar, click APM Domains.

APM Domains

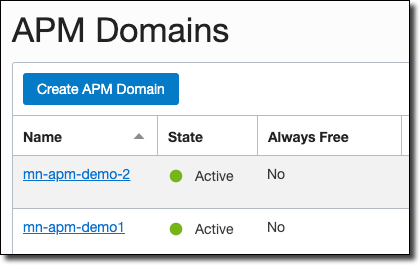

Click Create APM Domain.

Create APM Domain

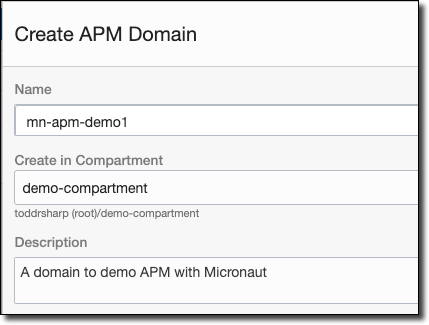

Name it, choose a compartment, and enter a description.

Create APM Domain Details

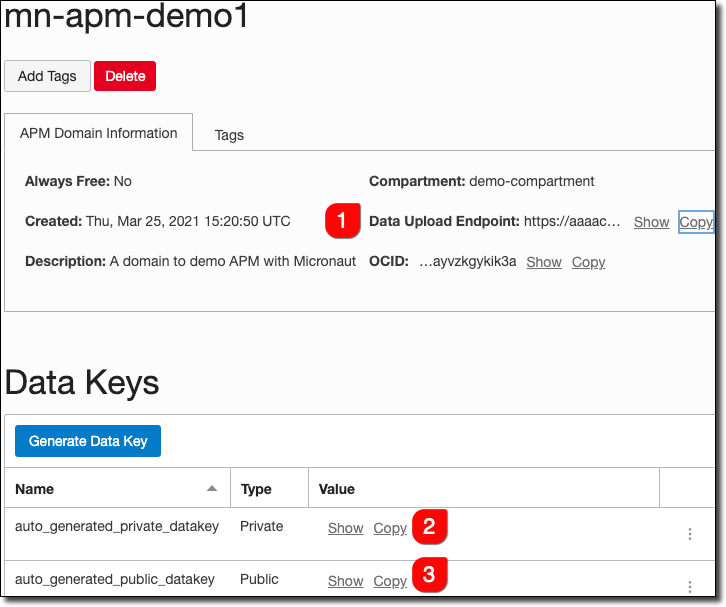

Once the domain is created, view the domain details. Here you’ll need to grab a few values, so copy the data upload endpoint (#1), private key (#2), and public key (#3).

Create APM Domain

Now we have what we need to construct a URL to plug in to our application config files. The Collector URL format requires us to construct a URL by using the data upload endpoint as our base URL and generate the path based on some choices including values from our private or public key. The format is documented here. Once we’ve constructed the URL path, we can add it to our application-oraclecloud.yml config.

Example Oracle Cloud Config
micronaut:
  application:
    name: demo2
tracing:
  zipkin:
    enabled: true
    sampler:
      probability: 1
    http:
      url: https://[redacted].apm-agt.us-phoenix-1.oci.oraclecloud.com
      path: /20200101/observations/public-span?dataFormat=zipkin&dataFormatVersion=2&dataKey=[public key]
    supportsJoin: false

If you want to keep these values out of the config file, you could set them as environment variables on the server like so:

Set ENV vars
export TRACING_ZIPKIN_HTTP_URL="https://[redacted].apm-agt.us-phoenix-1.oci.oraclecloud.com" export TRACING_ZIPKIN_HTTP_PATH="/20200101/observations/public-span?dataFormat=zipkin&dataFormatVersion=2&dataKey=[public key]"

Your application will now send trace information to APM.

View Trace Data in APM

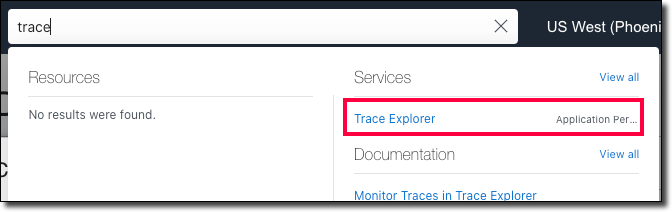

Go to the APM Trace Explorer in the OCI console.

APM Trace Explorer

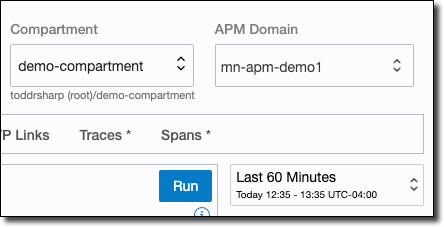

Choose your APM domain in the top right and the time period that you’d like to view/search.

APM Trace Explorer Choose Domain

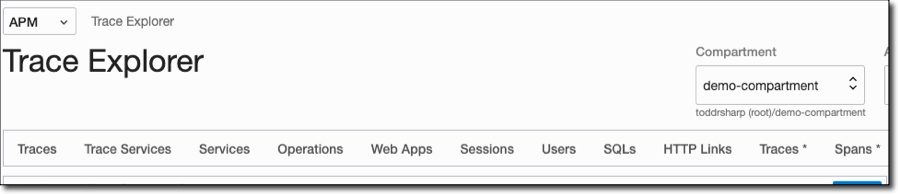

Choose one of the available pre-configured queries across the top.

APM Trace Explorer Choose Query

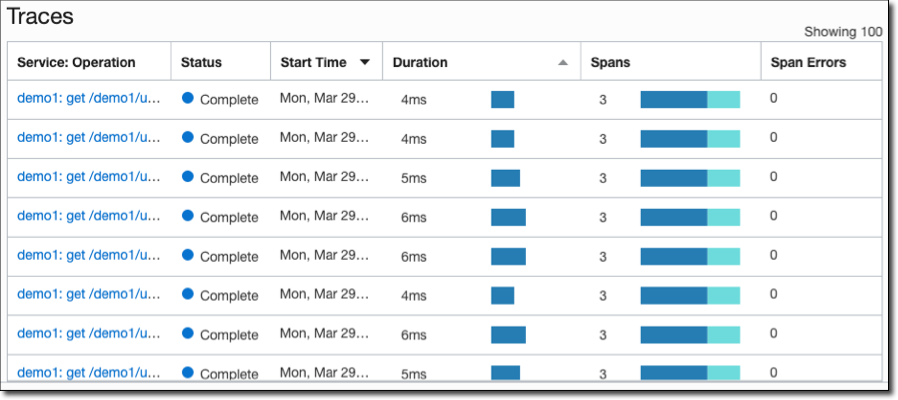

View traces and spans:

APM Trace Explorer Traces

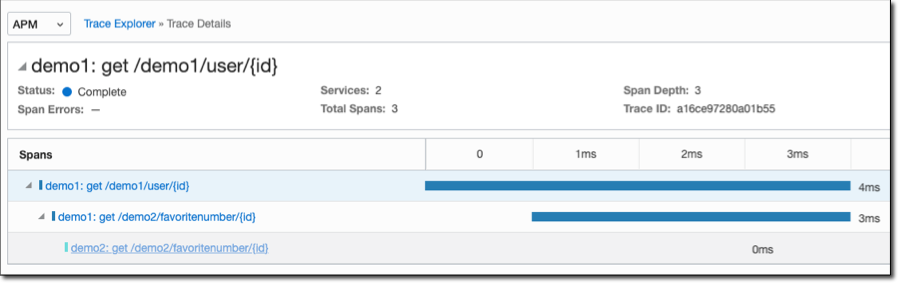

Click a trace to view detailed info.

APM Trace Explorer Trace Details

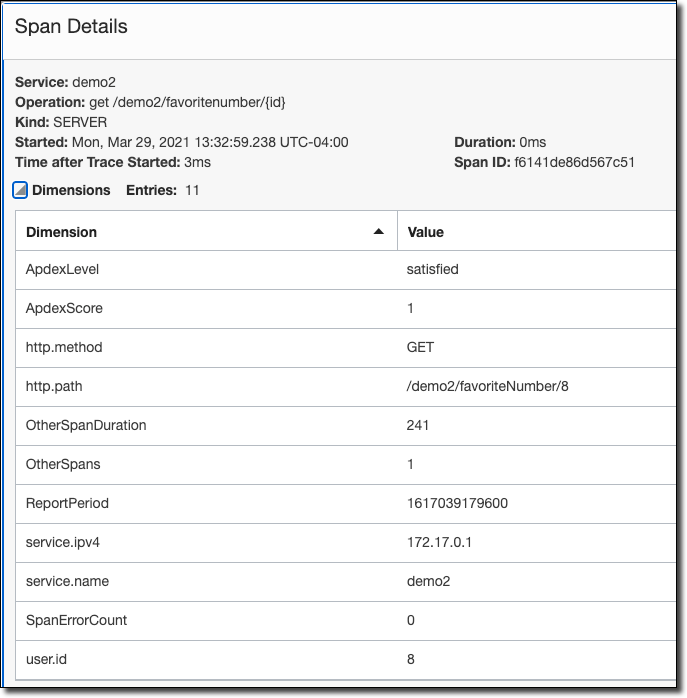

Click a span inside a trace to view detailed info and tagged values.

APM Trace Explorer Span Details

For more info, please see Adding Tracing to Your Distributed Cloud Native Microservices.

Read more about the Trace Explorer in the documentation.

12 Secure Distributed Configuration with Oracle Cloud Vault

To get started with Distributed Configuration with Oracle Cloud Vault, add the following dependency to your project:

implementation("io.micronaut.oraclecloud:micronaut-oraclecloud-vault")
<dependency>
    <groupId>io.micronaut.oraclecloud</groupId>
    <artifactId>micronaut-oraclecloud-vault</artifactId>
</dependency>

Then create a src/main/resources/bootstrap.yml file and ensure your Authentication configuration is present in this file so you can authenticate with one of the supported mechanisms (config, instance principal, resource principal etc.).

Then add the following to the bootstrap.yml to configure Vault support:

src/main/resources/bootstrap.yml
micronaut:
  application:
    name: myapp
  config-client:
    enabled: true
oci:
  vault:
    config:
      enabled: true
    vaults:
      - ocid: ocid1.vault.oc1.phx...
        compartment-ocid: ocid1.compartment.oc1...

One or many Vaults can be configured and each should include a ocid and compartment-ocid configuration entry. Note that the compartment-ocid is not the vault compartment but a compartment from where the secrets will be fetched.

If you only want this configuration to be active in the Oracle Cloud environment but not locally name the file bootstrap-oraclecloud.yml

You’re now ready to go! You can access the config variables in a few different ways. If you create a secret with the name of SECRET_ONE in your Oracle Cloud Vault, then it will be available to use in your application like any standard configuration variable:

@Value("${SECRET_ONE}") String secretOne;

You can also use @Property:

@Property(name = "SECRET_ONE") String secretOne;

Vault retrieved values are always String, but you can use @ConfigurationProperties` on a bean to provide properly typed configuration variables.

So if you were to create secrets in your Oracle Cloud Vault like so:

Name Value

MY_SECRETS_ONE

Value One

MY_SECRETS_TWO

value two

MY_SECRETS_THREE

true

MY_SECRETS_FOUR

42

MY_SECRETS_FIVE

3.16

You could add a config bean, like so:

@ConfigurationProperties("my-secrets")
public class Config {
    private String one;
    private String two;
    private boolean three;
    private int four;
    private Double five;

    /* getters/setters removed for brevity */
}

Another option is to inject your variables into your configuration files which gives you the ability to store things like database passwords and API keys in your vault:

datasources:
    default:
        password: ${DB_PASSWORD}

13 Repository

You can find the source code of this project in this repository:

https://github.com/micronaut-projects/micronaut-oracle-cloud
