Micronaut Oracle Cloud

Provides integration between Micronaut and Oracle Cloud

Version:

1 Introduction

This module provides integration between Micronaut and the Oracle Cloud SDK by giving you the ability to easily inject SDK clients into your Micronaut services and controllers. In addition to supporting the SDK’s blocking clients, the module provides reactive clients that use RxJava to provide async alternatives to the blocking clients in the SDK (an improvement upon the SDK’s 'out-of-the-box' aysnc clients). This module also includes support for Oracle Cloud (serverless) Functions.

2 Quick Start

To get started quickly Setup the Oracle Cloud CLI making sure you have run oci setup config to configure local access to Oracle Cloud.

Then add a dependency on the micronaut-oci-sdk module:

implementation("io.micronaut.oci:micronaut-oci-sdk")
<dependency>
    <groupId>io.micronaut.oci</groupId>
    <artifactId>micronaut-oci-sdk</artifactId>
</dependency>

Followed by a dependency on the OCI SDK client you wish to use, for example for Object Store:

implementation("io.micronaut:com.oracle.oci.sdk:oci-java-sdk-objectstorage")
<dependency>
    <groupId>io.micronaut</groupId>
    <artifactId>com.oracle.oci.sdk</artifactId>
    <version>oci-java-sdk-objectstorage</version>
</dependency>

All OCI SDK clients are supported.

3 Authentication

The following authentication providers are supported in this module:

ConfigFileAuthenticationDetailsProvider

The ConfigFileAuthenticationDetailsProvider uses a config file located at $USER_HOME/.oci/config. Specify a profile within the config file via your application.yml:

oci:
  config:
    profile: DEFAULT

SimpleAuthenticationDetailsProvider

The SimpleAuthenticationDetailsProvider allows you to provide config details via standard Micronaut configuration files (application.yml).

oci:
  fingerprint: [String. The private key fingerprint]
  passphrase: [String. The private key passphrase]
  private-key: [String. The contents of your private key. Optionally, pass a path with private-key-file (see below).]
  private-key-file: [String. The path to the private key file (used in place of private-key above)]
  region: [String. Ex: us-phoenix-1]
  tenant-id: [String. The tenancy OCID]
  user-id: [String. The user OCID]

InstancePrincipalsAuthenticationDetailsProvider

If your application is running in the Oracle Cloud, you can authorize the InstancePrincipalsAuthenticationDetailsProvider to make SDK calls and utilize Instance Principal authentication. See the documentation to enable this via dynamic groups and policies, and then enable it for the Oracle Cloud environment via application-oraclecloud.yml with:

oci:
  config:
    instance-principal:
        enabled: true

ResourcePrincipalAuthenticationDetailsProvider

ResourcePrincipalAuthenticationDetailsProvider is similar to instance principals, but used for Oracle Functions (serverless). See the documentation for instructions on how to configure the necessary dynamic group rules and policies to use Resource Principal auth with your serverless functions. Once the proper configuration is complete, your Micronaut driven serverless functions will be able to use the OCI SDKs with no futher configuration needed.

4 Available Modules

The following modules are provided.

micronaut-oci-common

implementation("io.micronaut.oci:micronaut-oci-common")
<dependency>
    <groupId>io.micronaut.oci</groupId>
    <artifactId>micronaut-oci-common</artifactId>
</dependency>

Provides the common functionality and sets up the following beans:

micronaut-oci-sdk

implementation("io.micronaut.oci:micronaut-oci-sdk")
<dependency>
    <groupId>io.micronaut.oci</groupId>
    <artifactId>micronaut-oci-sdk</artifactId>
</dependency>

Provides support for injecting any of the available SDK client interfaces.

This module does not have a dependency on any one module. You should add these to your project as needed. For example to use Object Storage you would define a dependency on this module as well as:

implementation("com.oracle.oci.sdk:oci-java-sdk-objectstorage")
<dependency>
    <groupId>com.oracle.oci.sdk</groupId>
    <artifactId>oci-java-sdk-objectstorage</artifactId>
</dependency>

micronaut-oci-function

implementation("io.micronaut.oci:micronaut-oci-function")
<dependency>
    <groupId>io.micronaut.oci</groupId>
    <artifactId>micronaut-oci-function</artifactId>
</dependency>

Provides the OciFunction super class that you can subclass to enable the ability to write Oracle Cloud Functions in Micronaut that can utilize Micronaut dependency injection services.

micronaut-oci-function-http

implementation("io.micronaut.oci:micronaut-oci-function-http")
<dependency>
    <groupId>io.micronaut.oci</groupId>
    <artifactId>micronaut-oci-function-http</artifactId>
</dependency>

Provides the HttpFunction class that can be used as a handler to write HTTP API Gateway function handlers that delegate to regular Micronaut controllers.

5 RxJava 2 Support

In addition to the blocking clients, this module provides clients that use RxJava to allow reactive programming with Micronaut for each SDK.

You need to add the relevant OCI SDK dependency to use these clients.

For example, instead of ObjectStorageClient, you can inject ObjectStorageRxClient to use the Object Storage API:

import com.oracle.bmc.objectstorage.model.*;
import com.oracle.bmc.objectstorage.requests.*;
import com.oracle.bmc.objectstorage.responses.*;
import io.micronaut.http.annotation.*;
import io.micronaut.oci.clients.rxjava2.objectstorage.ObjectStorageRxClient;
import io.micronaut.oci.core.TenancyIdProvider;
import io.reactivex.Single;

import javax.annotation.Nullable;
import java.util.List;
import java.util.stream.Collectors;

@Controller("/os")
public class BucketController implements BucketOperations {
    private final ObjectStorageRxClient objectStorage;
    private final TenancyIdProvider tenancyIdProvider;

    public BucketController(
            ObjectStorageRxClient objectStorage,
            TenancyIdProvider tenancyIdProvider) { (1)
        this.objectStorage = objectStorage;
        this.tenancyIdProvider = tenancyIdProvider;
    }
}
1 The ObjectStorageRxClient is injected into the constructor.

Once you have a reference to the relevant RxJava 2 client it is easier to compose non-blocking operations, the following example creates a bucket:

@Override
@Post(value = "/buckets/{name}")
public Single<String> createBucket(String name) {
    String tenancyId = tenancyIdProvider.getTenancyId();
    GetNamespaceRequest getNamespaceRequest = GetNamespaceRequest.builder()
            .compartmentId(tenancyId).build();
    return objectStorage.getNamespace(getNamespaceRequest) (1)
            .flatMap(namespaceResponse -> {
        CreateBucketRequest.Builder builder = CreateBucketRequest.builder()
                .namespaceName(namespaceResponse.getValue())
                .createBucketDetails(CreateBucketDetails.builder()
                        .compartmentId(tenancyId)
                        .name(name)
                        .build());

        return objectStorage.createBucket(builder.build()) (2)
                .map(CreateBucketResponse::getLocation); (3)
    });
}
1 First a request to obtain the namespace is sent
2 Then with the response the flatMap operator is used to send another request to create a bucket
3 Finally the location of the bucket is returned in the response

6 Oracle Functions (Serverless)

Oracle Functions are based on Project.fn. You can write simple functions targeting the Oracle Function environment by extending from the OciFunction super class.

Micronaut’s Oracle Function support can utilize GraalVM native-image running within a Docker container. This will result in extremely responsive serverless functions utilizing very few Cloud resources.

This super class enables dependency injection for the function. Note that the the function definition must conform to the following rules:

  • The class must have a public no arguments constructor

  • A public method that executes the function must be defined

  • The class must be annotated with @Singleton

Micronaut support for Oracle Functions can be combined with the OCI SDK support to give your serverless functions accesss to the OCI SDKs as needed.

You must have resource principal authentication properly configured in order for this example to work.

Dependencies

To get started with Gradle as a build tool you should add the Project.fn repository and the Micronaut Gradle plugin:

plugins {
    id "io.micronaut.application", version "1.0.0.M9"
}

repositories {
    maven {
        url("https://dl.bintray.com/fnproject/fnproject")
    }
}

And include a runtime dependency on Project.fn:

runtimeOnly("com.fnproject.fn:runtime:1.0.109")
<dependency>
    <groupId>com.fnproject.fn</groupId>
    <artifactId>runtime</artifactId>
    <version>1.0.109</version>
    <scope>runtime</scope>
</dependency>

Oracle Function support requires the Micronaut OCI Functions module:

implementation("io.micronaut.oci:micronaut-oci-function")
<dependency>
    <groupId>io.micronaut.oci</groupId>
    <artifactId>micronaut-oci-function</artifactId>
</dependency>

Optionally, to use the OCI SDK module from within your function, include the micronaut-oci-sdk:

implementation("io.micronaut.oci:micronaut-oci-sdk")
<dependency>
    <groupId>io.micronaut.oci</groupId>
    <artifactId>micronaut-oci-sdk</artifactId>
</dependency>

In addition, your function will need the necessary OCI SDK dependency/dependencies. For example, the object storage module:

implementation("com.oracle.oci.sdk:oci-java-sdk-objectstorage")
<dependency>
    <groupId>com.oracle.oci.sdk</groupId>
    <artifactId>oci-java-sdk-objectstorage</artifactId>
</dependency>

Build

The following provides a serverless function example that uses the Object Storage API to list the available buckets:

import com.oracle.bmc.objectstorage.ObjectStorageClient;
import com.oracle.bmc.objectstorage.model.BucketSummary;
import com.oracle.bmc.objectstorage.requests.GetNamespaceRequest;
import com.oracle.bmc.objectstorage.requests.ListBucketsRequest;
import io.micronaut.oci.core.TenancyIdProvider;
import io.micronaut.oci.function.OciFunction;

import javax.inject.*;
import java.util.List;
import java.util.stream.Collectors;

@Singleton
public class ListBucketsFunction extends OciFunction { (1)

    @Inject
    ObjectStorageClient objectStorageClient; (2)

    @Inject
    TenancyIdProvider tenantIdProvider;

}
1 A public class with a no argument constructor annotated with @Singleton and extending from OciFunction
2 You can use the @Inject annotation to inject SDK components

Once you have defined the function you should define a public method that is the function handler. For example:

public List<String> handleRequest() {
    GetNamespaceRequest getNamespaceRequest = GetNamespaceRequest.builder()
            .compartmentId(tenantIdProvider.getTenancyId()).build();
    String namespace = objectStorageClient.getNamespace(getNamespaceRequest).getValue();
    final ListBucketsRequest.Builder builder = ListBucketsRequest.builder();
    builder.namespaceName(namespace);
    builder.compartmentId(tenantIdProvider.getTenancyId());
    return objectStorageClient.listBuckets(builder.build())
            .getItems().stream().map(BucketSummary::getName)
            .collect(Collectors.toList());
}

The above example uses the Object Storage API to list the available buckets.

Dockerfile

To build a Oracle Cloud Function into a GraalVM native-image plugin, you will need to include the following Dockerfile in your function’s root directory.

FROM oracle/graalvm-ce:20.1.0-java11 as graalvm
RUN gu install native-image

WORKDIR /home/app
COPY build/layers/libs /home/app/libs
COPY build/layers/application.jar /home/app/application.jar

RUN native-image --static \
                 -H:Name=func \
                 --report-unsupported-elements-at-runtime \
                 --no-server \
                 --no-fallback \
                 -Dfn.handler="example.ListBucketsFunction::handleRequest" \
                 -cp /home/app/libs/*.jar:/home/app/resources:/home/app/application.jar \
                 com.fnproject.fn.runtime.EntryPoint

# need socket library from Fn FDK
FROM fnproject/fn-java-fdk:1.0.105 as fnfdk

# Package native binary in minimal container image
FROM oraclelinux:7-slim
WORKDIR /function
RUN groupadd -g 1000 fn && useradd --uid 1000 -g fn fn
COPY --from=graalvm /home/app/func func
# get unix socket libraries from FDK container image
COPY --from=fnfdk /function/runtime/lib/* .
ENTRYPOINT ["./func", "-XX:MaximumHeapSizePercent=80"]
CMD [ "example.ListBucketsFunction::handleRequest" ]

Deploy

To deploy your function, first use ./gradlew buildLayers to build the necessary artifacts that the Dockerfile needs to generate the native-image. Then deploy per the normal Oracle Functions method (IE: fn deploy --app [your app name]).

Deploying your function with Micronaut will take longer than deploying without because of the native-image support. Runtime performance will greatly make up for the slow deployment.

7 Oracle Functions HTTP (Serverless)

The micronaut-oci-function-http module gives you the ability to write HTTP API Gateway function handlers that delegate to regular Micronaut controllers.

Create your controller just as you would a normal Micronaut controller.

import com.oracle.bmc.objectstorage.ObjectStorage;
import com.oracle.bmc.objectstorage.model.BucketSummary;
import com.oracle.bmc.objectstorage.model.CreateBucketDetails;
import com.oracle.bmc.objectstorage.model.ListObjects;
import com.oracle.bmc.objectstorage.model.ObjectSummary;
import com.oracle.bmc.objectstorage.requests.*;
import com.oracle.bmc.objectstorage.responses.GetNamespaceResponse;
import io.micronaut.core.util.CollectionUtils;
import io.micronaut.http.MediaType;
import io.micronaut.http.annotation.*;
import io.micronaut.oci.core.TenancyIdProvider;

import javax.annotation.Nullable;
import java.util.List;
import java.util.Map;
import java.util.Optional;
import java.util.stream.Collectors;

@Controller("/os")
public class BucketController {
    private final ObjectStorage objectStorage;
    private final TenancyIdProvider tenancyIdProvider;

    public BucketController(
            ObjectStorage objectStorage,
            TenancyIdProvider tenancyIdProvider) { (1)
        this.objectStorage = objectStorage;
        this.tenancyIdProvider = tenancyIdProvider;
    }
}
1 This example uses the micronaut-oci-sdk module to perform Object Storage operations, so the ObjectStorage client and TenancyIdProvider are injected.

Next, add a controller method to list all of the buckets in a compartment:

@Get("/buckets{/compartmentId}")
public List<String> listBuckets(@PathVariable @Nullable String compartmentId) {
    String compartmentOcid = compartmentId != null ? compartmentId : tenancyIdProvider.getTenancyId();
    GetNamespaceRequest getNamespaceRequest = GetNamespaceRequest.builder()
            .compartmentId(compartmentOcid).build();
    final GetNamespaceResponse namespaceResponse = objectStorage.getNamespace(getNamespaceRequest);
    final ListBucketsRequest.Builder builder = ListBucketsRequest.builder();
    builder.namespaceName(namespaceResponse.getValue());
    builder.compartmentId(compartmentOcid);
    return objectStorage.listBuckets(builder.build())
                    .getItems()
                    .stream()
                    .map(BucketSummary::getName)
                    .collect(Collectors.toList());
}

Dockerfile

Since Micronaut’s support for Oracle Functions depends upon the GraalVM native-image plugin, you will need to include the following Dockerfile in your function’s root directory.

FROM oracle/graalvm-ce:20.2.0-java11 as graalvm
RUN gu install native-image

WORKDIR /home/app
COPY build/layers/libs /home/app/libs
COPY build/layers/resources /home/app/resources
COPY build/layers/application.jar /home/app/application.jar

RUN native-image --static \
                 -H:Name=func \
                 --report-unsupported-elements-at-runtime \
                 --initialize-at-build-time=example \
                 --no-server \
                 -H:IncludeResources=simplelogger.properties \
                 --no-fallback \
                 -cp /home/app/libs/*.jar:/home/app/resources:/home/app/application.jar \
                 com.fnproject.fn.runtime.EntryPoint


# need socket library from Fn FDK
FROM fnproject/fn-java-fdk:1.0.105 as fnfdk

# Package native binary in minimal container image
FROM oraclelinux:7-slim
WORKDIR /function
RUN groupadd -g 1000 fn && useradd --uid 1000 -g fn fn
COPY --from=graalvm /home/app/func func
# get unix socket libraries from FDK container image
COPY --from=fnfdk /function/runtime/lib/* .
ENTRYPOINT ["./func", "-XX:MaximumHeapSizePercent=80"]
CMD [ "io.micronaut.oci.function.http.HttpFunction::handleRequest" ]

Build & Deploy

Build your application with ./gradlew buildLayers and deploy with fn deploy --app [your app name].

API Gateway

You’ll need to create an API Gateway to route requests to your serverless deployment. The Micronaut router will call the proper controller function based on the incoming HTTP Request Method and the path.

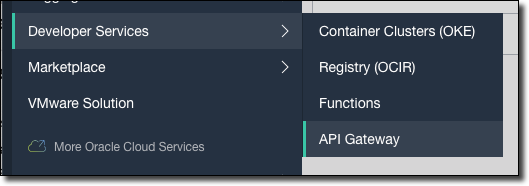

First, create an API Gateway by selecting 'Developer Services', then 'API Gateway' from the Oracle Cloud console dashboard.

API Gateway Menu

Click on 'Create Gateway'.

Create Gateway Button

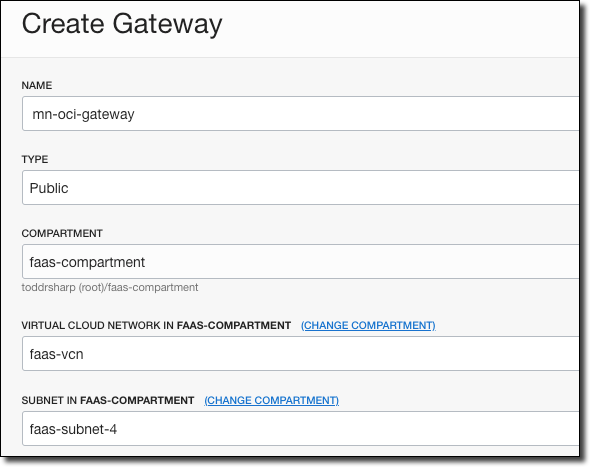

Enter a name for the gateway, choose the compartment it is stored in and the network and subnet.

Create Gateway Button

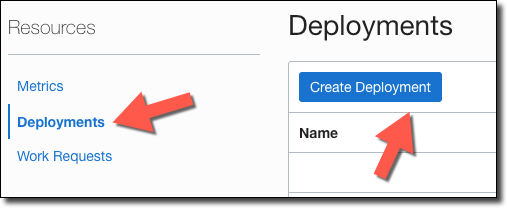

When the gateway is ‘Active’, click ‘Deployments’, then ‘Create Deployment’.

Create Gateway Button

Provide a name for the deployment and enter a “Path Prefix”. If necessary, configure any Authentication, CORS or Rate Limiting and click ’Next’.

The path prefix must match the path you used in your controller (IE: @Controller("/os")).
Create Gateway Button

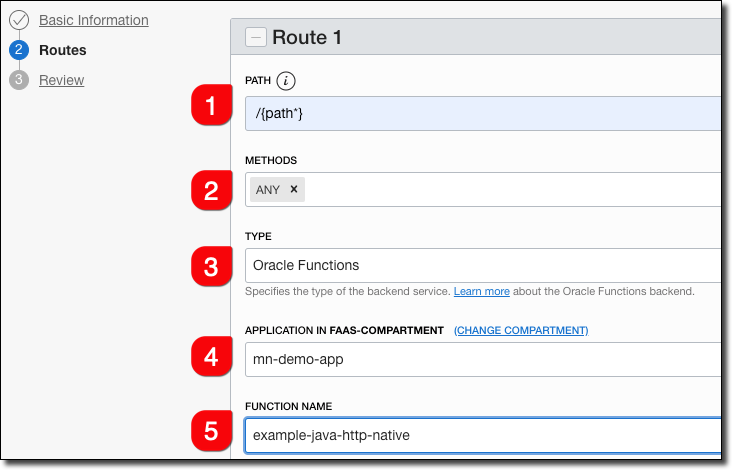

Enter route information.

  1. Enter /{path*} as the Path. This will capture all incoming requests and the Micronaut router will match the incoming path and request method with the proper controller method.

  2. Choose ANY for methods. Optionally, choose the necessary methods individually.

  3. Choose 'Oracle Functions' as the type.

  4. Choose the appropriate Oracle Functions application.

  5. Choose the function name that you used. This can be found in your function’s func.yaml file.

Create Gateway Button

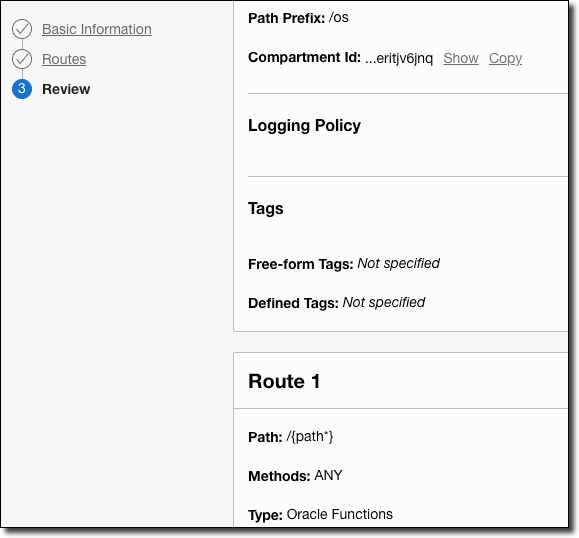

Click 'Next', then review the deployment details and click 'Create'.

Review Deployment Details

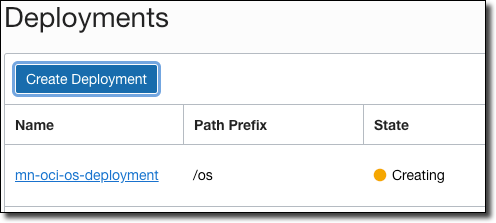

Your new deployment will be listed in 'Creating' state.

Deployment Creating

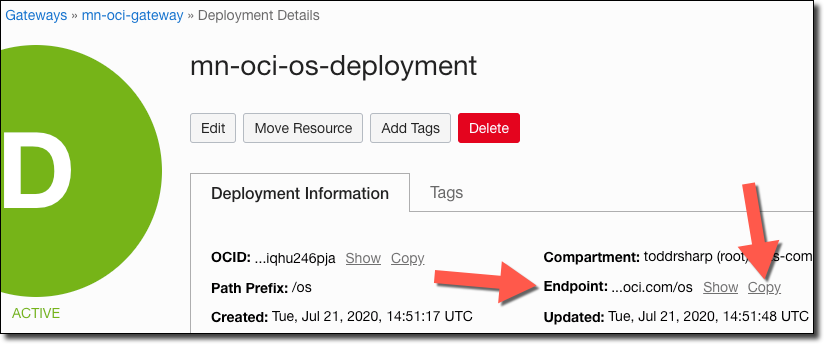

When your new deployment becomes 'Active', click on the deployment to view the deployment details. Copy the 'Endpoint' - this is the base URL that you’ll use for your function invocations.

Create Gateway Button

Test your functions by appending the proper controller path and one of your controller endpoints.

Create Gateway Button
