Micronaut Picocli Configuration

Provides integration between Micronaut and Picocli

Version:

1 Introduction

Picocli is a command line parser that supports usage help with ANSI colors, autocomplete and nested subcommands. It has an annotations API to create command line applications with almost no code, and a programmatic API for dynamic uses like creating Domain Specific Languages.

From the project Readme page:

How it works: annotate your class and picocli initializes it from the command line arguments, converting the input to strongly typed data. Supports git-like subcommands (and nested sub-subcommands), any option prefix style, POSIX-style grouped short options, password options, custom type converters and more. Parser tracing facilitates troubleshooting.

It distinguishes between named options and positional parameters and allows both to be strongly typed. Multi-valued fields can specify an exact number of parameters or a range (e.g., 0..*, 1..2). Supports Map options like -Dkey1=val1 -Dkey2=val2, where both key and value can be strongly typed.

It generates polished and easily tailored usage help and version help, using ANSI colors where possible. Picocli-based command line applications can have TAB autocompletion, interactively showing users what options and subcommands are available. Picocli can generate completion scripts for bash and zsh, and offers an API to easily create a JLine Completer for your application.

Micronaut features dedicated support for defining picocli Command instances. Micronaut applications built with picocli can be deployed with or without the presence of an HTTP server.

Combining picocli with Micronaut makes it easy to provide a rich, well-documented command line interface for your Microservices.

2 Release History

For this project, you can find a list of releases (with release notes) here:

https://github.com/micronaut-projects/micronaut-picocli/releases

3 Create Micronaut Picocli app

You can create a Micronaut command line interface application using the Micronaut CLI:

Example 1. Using the CLI

$ mn create-cli-app my-app

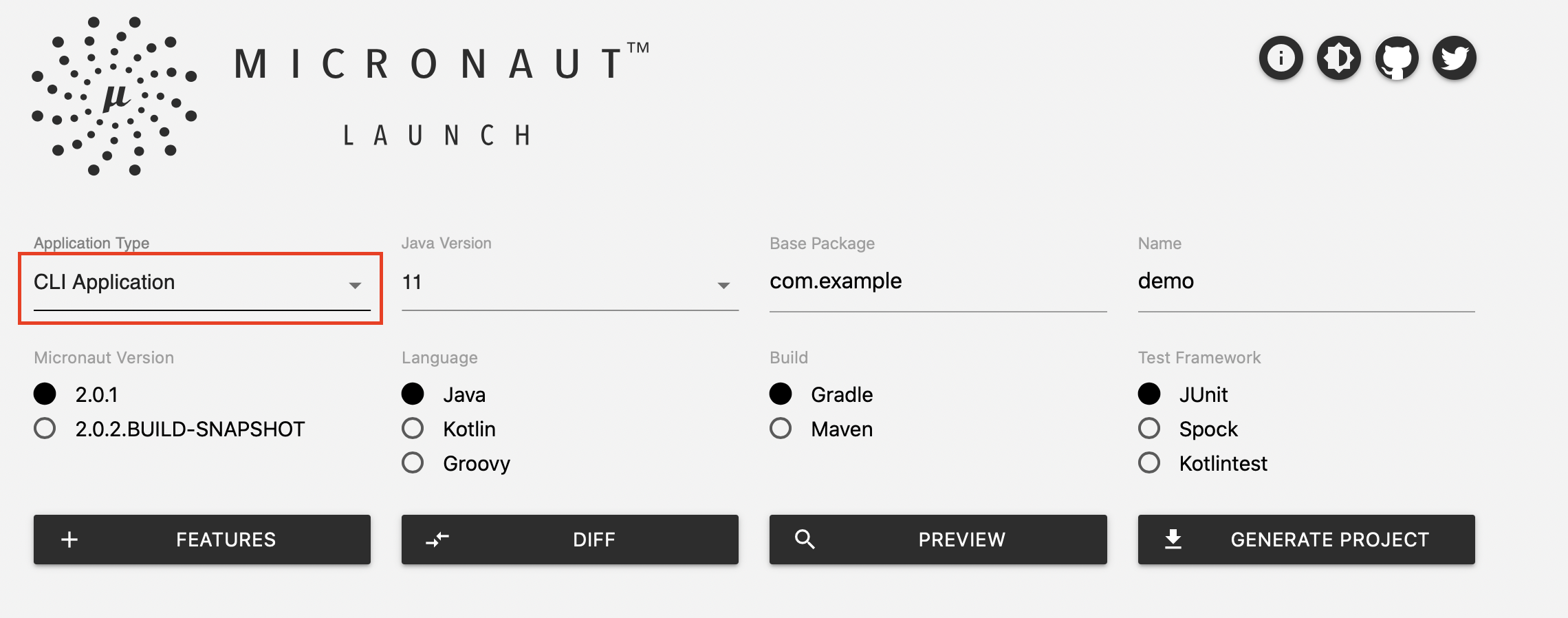

or with Micronaut Launch

4 Setting up Picocli

To add support for Picocli to an existing project, you should first add the picocli dependency and the Micronaut picocli configuration to your build configuration.

implementation("info.picocli:picocli")

<dependency>
    <groupId>info.picocli</groupId>
    <artifactId>picocli</artifactId>
</dependency>

implementation("io.micronaut.picocli:micronaut-picocli:4.2.1")

<dependency>
    <groupId>io.micronaut.picocli</groupId>
    <artifactId>micronaut-picocli</artifactId>
    <version>4.2.1</version>
</dependency>

Configuring picocli

Picocli does not require configuration. See other sections of the manual for configuring the services and resources to inject.

5 Generating a Picocli Project

To create a project with picocli support using the Micronaut CLI, use the create-cli-app command. This will add the dependencies for the picocli feature, and set the applicationType of the generated project to cli, so the create-command command is available to generate additional commands.

The main class of the project is set to the *Command class (based on the project name - e.g., hello-world will generate HelloWorldCommand):

$ mn create-cli-app my-cli-app

The generated command looks like this:

my.cli.app.MyCliAppCommand.java generated by create-cli-app

package my.cli.app;

import io.micronaut.configuration.picocli.PicocliRunner;
import io.micronaut.context.ApplicationContext;

import picocli.CommandLine;
import picocli.CommandLine.Command;
import picocli.CommandLine.Option;
import picocli.CommandLine.Parameters;

@Command(name = "my-cli-app", description = "...",
        mixinStandardHelpOptions = true) (1)
public class MyCliAppCommand implements Runnable { (2)

    @Option(names = {"-v", "--verbose"}, description = "...") (3)
    boolean verbose;

    public static void main(String[] args) throws Exception {
        PicocliRunner.run(MyCliAppCommand.class, args); (4)
    }

    public void run() { (5)
        // business logic here
        if (verbose) {
            System.out.println("Hi!");
        }
    }
}

1	The picocli @Command annotation designates this class as a command. The `mixinStandardHelpOptions` attribute adds `--help` and `--version` options to it.
2	By implementing `Runnable` or `Callable` your application can be executed in a single line (<4>) and picocli takes care of handling invalid input and requests for usage help (`<cmd> --help`) or version information (`<cmd> --version`).
3	An example option. Options can have any name and be of any type. The generated code contains this example boolean flag option that lets the user request more verbose output.
4	`PicocliRunner` lets picocli-based applications leverage the Micronaut DI container. `PicocliRunner.run` first creates an instance of this command with all services and resources injected, then parses the command line, while taking care of handling invalid input and requests for usage help or version information, and finally invokes the `run` method.
5	Put the business logic of the application in the `run` or `call` method.

Running the Application

Now you can build the project and start the application. The build will create a ${project-name}-all.jar with all dependencies in build/libs. Running this jar from Java will run the generated MyCliAppCommand.

$ java -jar build/libs/my-cli-app-0.1-all.jar -v

6 Picocli Quick Start

Creating a Picocli Command with @Command

This section will show a quick example that provides a command line interface to a HTTP client that communicates with the GitHub API.

When creating this example project with the Micronaut CLI, use the create-cli-app command, and add the --features=http-client flag:

$ mn create-cli-app example.git-star --features http-client

This will add the io.micronaut:micronaut-http-client dependency to the build. You can also manually add to your build:

implementation("io.micronaut:micronaut-http-client")

<dependency>
    <groupId>io.micronaut</groupId>
    <artifactId>micronaut-http-client</artifactId>
</dependency>

An Example HTTP Client

To create a picocli Command you create a class with fields annotated with @Option or @Parameters to capture the values of the command line options or positional parameters, respectively.

For example the following is a picocli @Command that wraps around the GitHub API:

Example picocli command with injected HTTP client

package example;

import io.micronaut.configuration.picocli.PicocliRunner;
import io.micronaut.context.ApplicationContext;
import io.micronaut.http.client.annotation.*;
import io.micronaut.http.client.*;
import io.reactivex.*;

import static io.micronaut.http.HttpRequest.*;

import picocli.CommandLine;
import picocli.CommandLine.Command;
import picocli.CommandLine.Option;
import picocli.CommandLine.Parameters;

import java.util.*;
import jakarta.inject.Inject;

@Command(name = "git-star", header = {
        "@|green       _ _      _             |@", (1)
        "@|green  __ _(_) |_ __| |_ __ _ _ _  |@",
        "@|green / _` | |  _(_-<  _/ _` | '_| |@",
        "@|green \\__, |_|\\__/__/\\__\\__,_|_|   |@",
        "@|green |___/                        |@"},
        description = "Shows GitHub stars for a project",
        mixinStandardHelpOptions = true, version = "git-star 0.1") (2)
public class GitStarCommand implements Runnable {

    @Client("https://api.github.com")
    @Inject RxHttpClient client; (3)

    @Option(names = {"-v", "--verbose"}, description = "Shows some project details")
    boolean verbose;

    @Parameters(description = {"One or more GitHub slugs (comma separated) to show stargazers for.",
                "  Default: ${DEFAULT-VALUE}"}, split = ",", paramLabel = "<owner/repo>") (4)
    List<String> githubSlugs = Arrays.asList("micronaut-projects/micronaut-core", "remkop/picocli");

    public static void main(String[] args) {
        int exitCode = PicocliRunner.execute(GitStarCommand.class, args);
        System.exit(exitCode);
    }

    public void run() { (5)
        for (String slug : githubSlugs) {
            Map m = client.retrieve(
                    GET("/repos/" + slug).header("User-Agent", "remkop-picocli"),
                    Map.class).blockingFirst();
            System.out.printf("%s has %s stars%n", slug, m.get("watchers"));

            if (verbose) {
                String msg = "Description: %s%nLicense: %s%nForks: %s%nOpen issues: %s%n%n";
                System.out.printf(msg, m.get("description"),
                                ((Map) m.get("license")).get("name"),
                                m.get("forks"), m.get("open_issues"));
            }
        }
    }
}

1	Headers, footers and descriptions can be multi-line. You can embed ANSI styled text anywhere with the `@\|STYLE1[,STYLE2]… text\|@` markup notation.
2	Add version information to display when the user requests this with `--version`. This can also be supplied dynamically, e.g. from the manifest file or a build-generated version properties file.
3	Inject a HTTP client. In this case, hard-coded to the GitHub API endpoint.
4	A positional parameter that lets the user select one or more GitHub projects
5	The business logic: display information for each project the user requested.

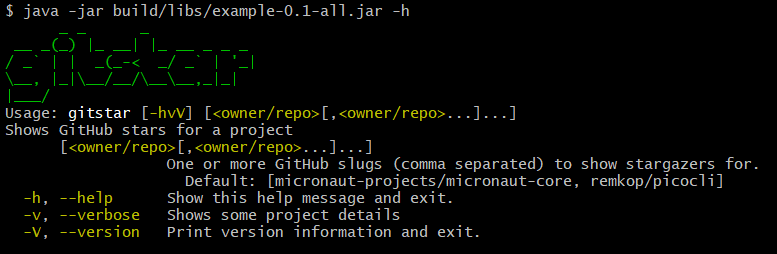

The usage help message generated for this command looks like this:

picocli example

7 Subcommands

If your service has a lot of functionality, a common pattern is to have subcommands to control different areas of the service. To allow Micronaut to inject services and resources correctly into the subcommands, make sure to obtain subcommand instances from the ApplicationContext, instead of instantiating them directly.

The easiest way to do this is to declare the subcommands on the top-level command, like this:

A top-level command with subcommands

@Command(name = "topcmd", subcommands = {SubCmd1.class, SubCmd2.class}) (1)
class TopCommand implements Callable<Object> { (2)

    public static void main(String[] args) {
        PicocliRunner.execute(TopCommand.class, args); (3)
    }
    //...
}

1	The top-level command has two subcommands, `SubCmd1` and `SubCmd2`.
2	Let all commands in the hierarchy implement `Runnable` or `Callable`.
3	Start the application with `PicocliRunner`. This creates an `ApplicationContext` that instantiates the commands and performs the dependency injection.

8 Customizing Picocli

Occasionally you may want to set parser options or otherwise customize picocli behavior. This can easily be done via the setter methods on the picocli CommandLine object, but the PicocliRunner does not expose that object.

In such cases, you may want to invoke picocli directly instead of using the PicocliRunner. The code below demonstrates how to do this:

Example of customizing the picocli parser before invoking a command

import io.micronaut.configuration.picocli.MicronautFactory;
import io.micronaut.context.ApplicationContext;
import io.micronaut.context.env.Environment;
import picocli.CommandLine;
import picocli.CommandLine.*;
import java.util.concurrent.Callable;

@Command(name = "configuration-example")
class ConfigDemo implements Callable<Object> {

    private static int execute(Class<?> clazz, String[] args) {
        try (ApplicationContext context = ApplicationContext.builder(
                clazz, Environment.CLI).start()) { (1)

            return new CommandLine(clazz, new MicronautFactory(context)). (2)
                 setCaseInsensitiveEnumValuesAllowed(true). (3)
                 setUsageHelpAutoWidth(true). (4)
                 execute(args); (5)
        }
    }

    public static void main(String[] args) {
        int exitCode = execute(ConfigDemo.class, args);
        System.exit(exitCode); (6)
    }
    // ...
}

1	Instantiate a new `ApplicationContext` for the `CLI` environment, in a try-with-resources statements, so that the context is automatically closed before the method returns.
2	Pass a `MicronautFactory` with the application context to the picocli `CommandLine` constructor. This enables dependencies to be injected into the command and subcommands.
3	An example of configuring the picocli command line parser.
4	An example of configuring the picocli usage help message.
5	Execute the command and return the result (this closes the application context).
6	Optionally call `System.exit` with the returned exit code.

9 Repository

You can find the source code of this project in this repository:

https://github.com/micronaut-projects/micronaut-picocli
